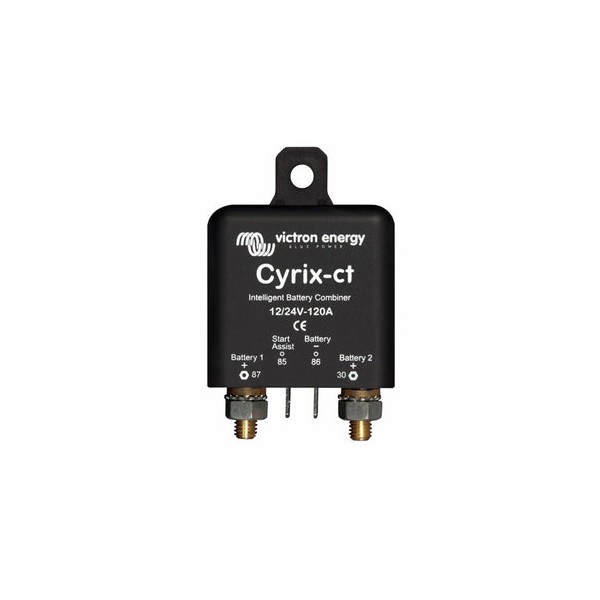

The Cyrix-ct intelligent battery combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when
one of them has reached a pre-set voltage (indicating that the battery is being charged), and disconnects when the voltage decreases below
float level (indicating that one or more batteries are being
discharged.
The software of the Cyrix-ct 12/24 does more than simply connect and disconnect based on battery voltage and with a fixed time
delay. It will analyse the general trend (voltage increasing or decreasing) and reverses a previous action only if the trend has
reversed during a certain period of time.
The time delay depends on the voltage deviation from the trend. Sensing the voltage of both connected batteries, the Cyrix will engage if for example the accessory battery is being charged by a battery charger.
The Cyrix-ct 12/24 also has a dual power supply and will close if the voltage on one battery is too low to operate the Cyrix but will not close if the voltage on one of the two battery connections is lower than 2V (12V battery) or 4V (24V battery).
- 12 and 24 Volts
- 120 Amps
- Intelligent battery monitoring to prevent unwanted switching
- Bi-directional voltage sensing and dual power supply
- Long bolts to allow connection of more than one power cable
- Protection against overheating
- No voltage loss
- Prioritising the starter battery
- Parallel connection in case of emergency (Start Assist)
Supplied Individually
All Prices Shown Are Exclusive Of VAT
A Datasheet For This Product Can Be Seen Here
