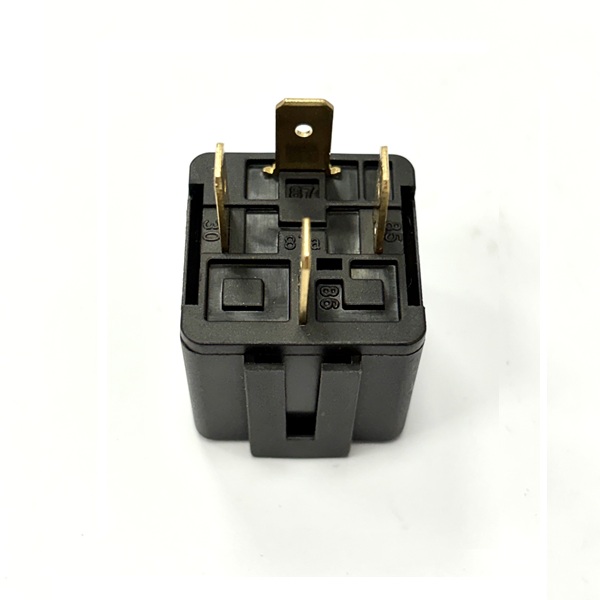

12V 30A 4 Pin Type A Relay - Normally Open Configuration

Product Information

12v 30A 'Make & Break' relay suitable for On/Off applications where the ability to switch a higher current from a low power source is needed.

'Type A' terminal layout - Pins 30 and 86 are reversed when compared to the usual Type B configuration

Normally Open configuration, the relay has an open circuit at rest. The removable fixing bracket allows easy mounting.

Can be used as a spot light relay amongst many other uses.

Supplied Individually

All prices shown are exclusive of VAT

Specification

• Voltage Rating: 12v
• Current Rating: 30A Max
• Fuse Rating: 30A
• Terminal Configuration: Type A
• Number Of Terminals: 4
• Terminal Size: 4 x 6.3mm Male Lucar Terminals
• Bracket Type: Removable
• Mounting Hole Size: 5mm Approx
• Diode: N/A
• Resistor: N/A
