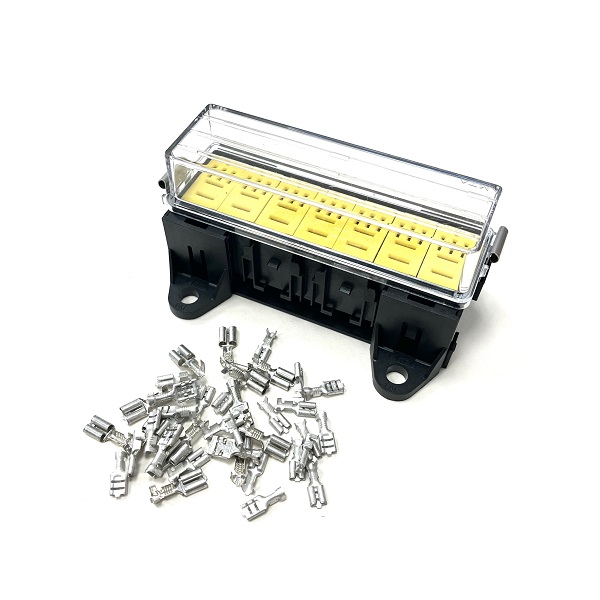

7 Way Micro Relay Box With Splashproof Cover

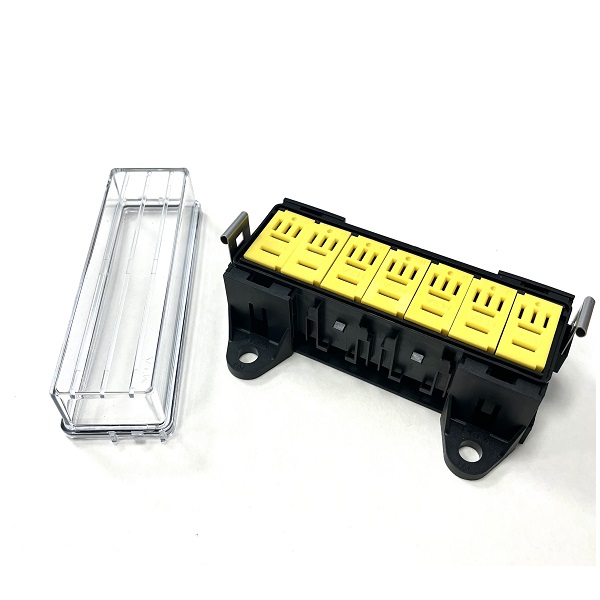

Seven way mini relay box featuring a transparent cover, gasket and locking bars

Suitable for mounting 7 micro type automotive relays with 4 or 5 terminals.

Cable connections are made using the 6.3mm or 4.8mm female crimp terminals supplied and are suitable for 1.0-2.5mm² cable size - terminals are then locked in place by pushing the yellow locking bars into the housing

Multiple boxes can be clipped together to increase capacity if required - the feet unclip and another housing clips on.

Compatible with our 16 way fuse box which can be seen here

Supplied Individually

All Prices Shown Are Exclusive Of VAT

Specification

• Fixing Hole Mounting Centres: 71mm
• Mounting Hole Size: 8.5mm
• Dimensions LxWxH (mm): 123 x 45 x 64
