4 Way Relay Holder With Splashproof Cover

SKU: RH665

£12.71

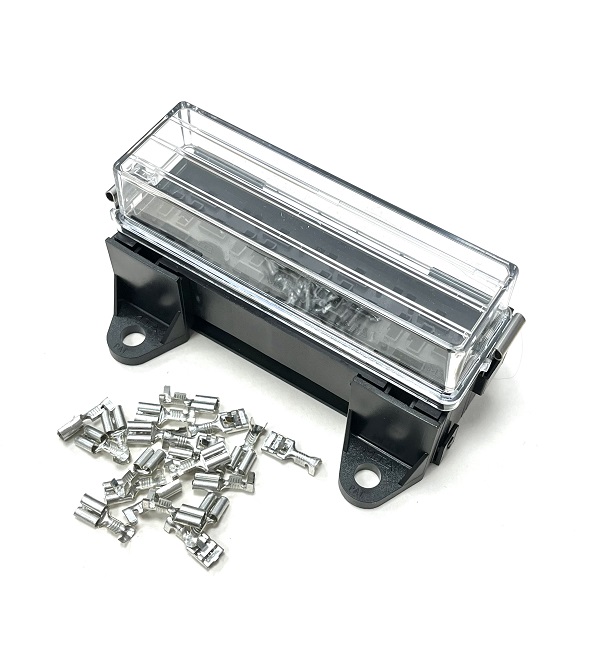

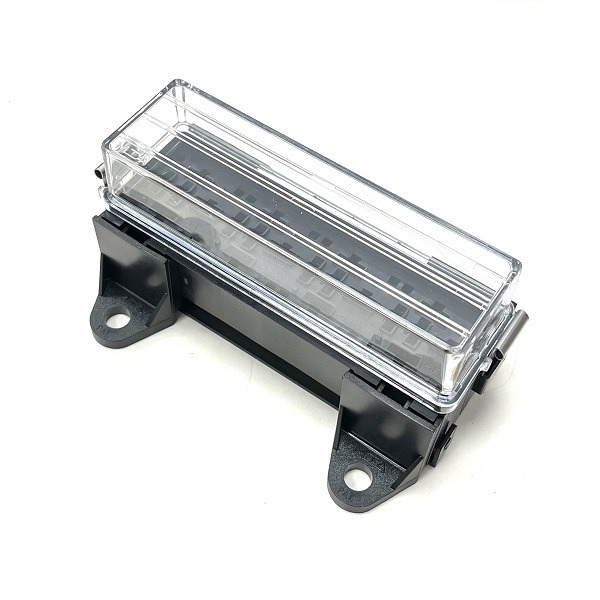

Four way mini relay box featuring a transparent cover, gasket and locking bars

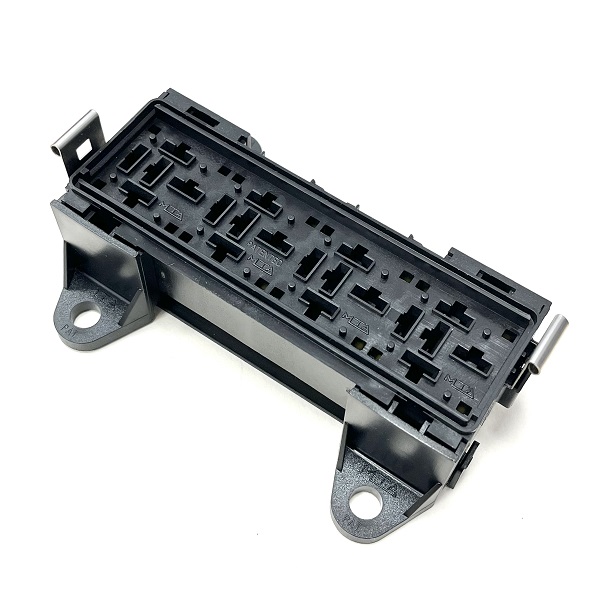

Suitable for mounting 4 standard automotive relays with 4 or 5 terminals.

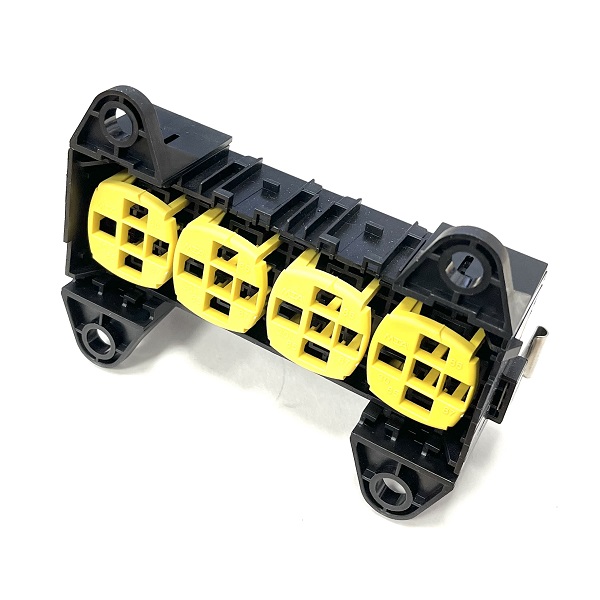

Cable connections are made using the 6.3mm female crimp terminals supplied and are suitable for 1.0-2.5mm² cable size - terminals are then locked in place by pushing the yellow locking bars into the housing

Multiple boxes can be clipped together to increase capacity if required - the feet unclip and another housing clips on.

Compatible with our 16 way fuse box which can be seen here

Supplied Individually

All Prices Shown Are Exclusive Of VAT

Specification

  • Fixing Hole Mounting Centres: 71mm
  • Mounting Hole Size: 8.5mm
  • Dimensions LxWxH (mm): 123 x 45 x 64
