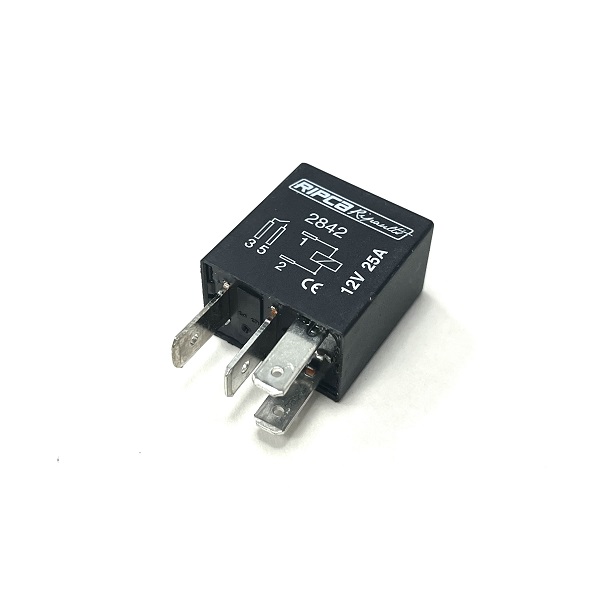

12V 4 Pin Normally Open Relay. Ideal for automotive, 4X4 and marine applications.
Normally used for switching circuits using On/Off applications
A normally open relay means the input and output circuits are not connected when the relay is at rest - the circuit is made when the relay is activated
Tin plated terminals
Supplied Individually
All prices shown are exclusive of VAT
Specification
- Voltage Rating: 12v
- Current Rating: 25A Max
- Number Of Terminals: 4
- Terminal Size: 2 x 6.3mm & 2 x 4.8mm Male Lucar Terminals
- Bracket Type: None
- Dimensions LxWxH (Including Terminals): 22x15x35 mm
