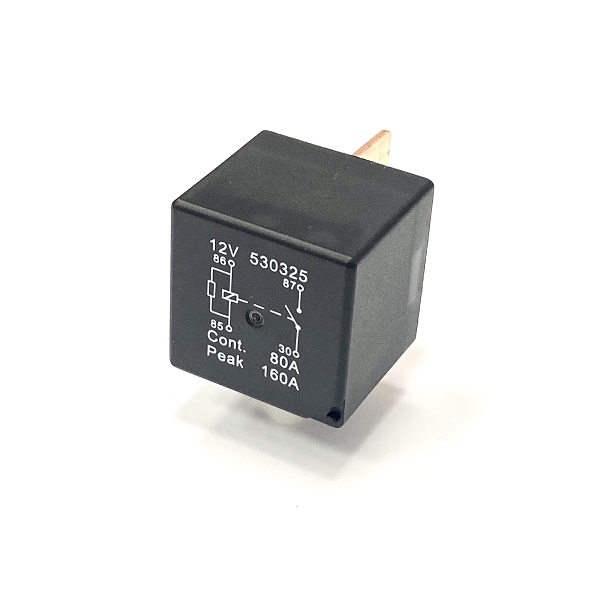

12v 80A 4 Pin Relay - Heavy Duty Make & Break With Resistor

12v 80A Make & Break relay suitable for applications where the ability to switch a higher current between two circuits from a low power source is needed.

Normally Open configuration, the relay has an open circuit at rest, a resistor is connected across Pin 85 & 86 and is there to prevent interference and inductive voltage spikes

Suitable for heavy duty applications such as split charging and starter motors amongst others.

Sealed base to prevent water ingress in harsh environments

Equivalent to Durite 0-727-71, Autotechnik RMO152 & HC-Cargo 160468

Supplied Individually

All Prices Shown Are Exclusive Of VAT

Specification

• Voltage Rating: 12v
• Current Rating: 80A Max
• Terminal Configuration: Type B
• Number Of Terminals: 4

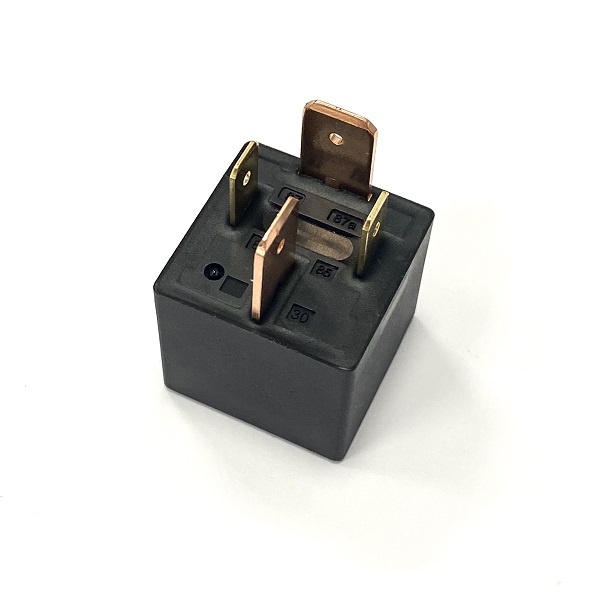

• Terminal Size: 2 x 6.3mm Male Lucar Terminals & 2 x 9.5mm Male Lucar Terminals
• Bracket Type: None
• Diode: No
• Resistor: Yes
• Dimensions LxWxH (Including Terminals): 28.7 x 32.5 x 42.5mm
