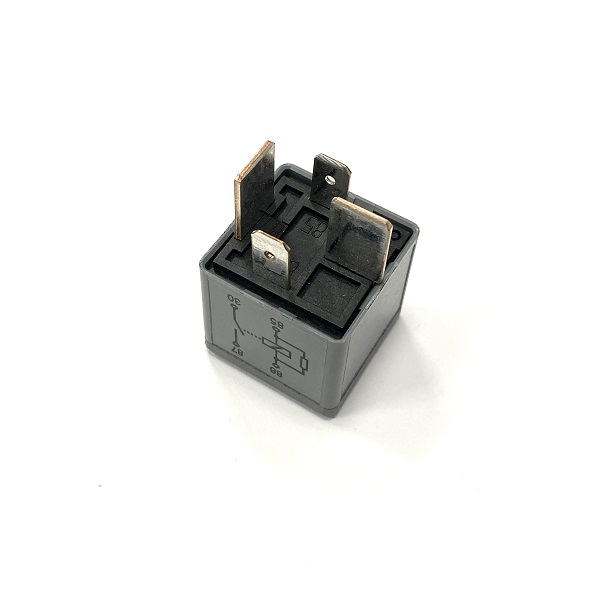

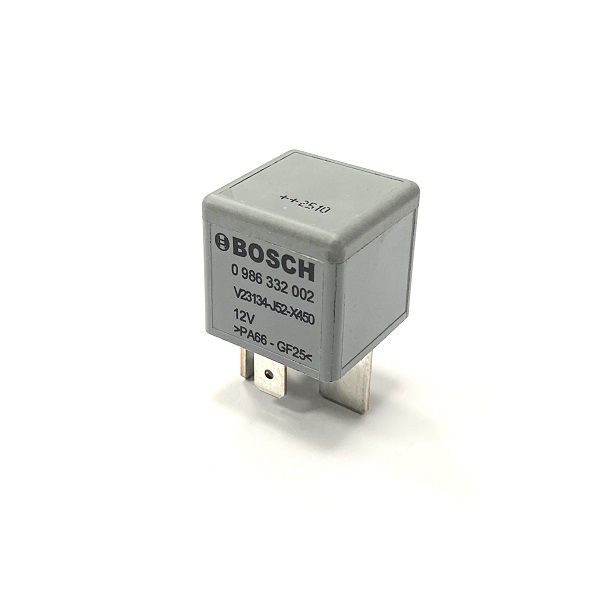

0986332002 - 12v 70A Heavy Duty Relay with Resistor - Genuine Bosch

Product Information

Genuine Bosch 12v 70A  relay with shunt resistor

Suitable for applications where the ability to switch a higher current between two circuits from a low power source is needed.

A normally open relay, the relay has a 70A rating on pin 87.  The relay is open circuit at rest and makes the circuit when energized. The shunt resistor is connected across Pin 85 & 86 and is there to prevent interference and inductive voltage spikes

Direct replacement for some VW and BMW relays - please check compatibility with your existing part before ordering.

Supplied Individually

All Prices Shown Are Exclusive Of VAT

Specification

• Voltage Rating: 12v
• Current Rating: 70A Max
• Terminal Configuration: Type B
• Number Of Terminals: 4
• Terminal Size: 2 x 6.3mm Male Lucar Terminals - 2 x 9.5mm Male Lucar Terminals
• Bracket Type: None
• Mounting Hole Size: N/A
• Diode: No
• Resistor: Yes
• Dimensions LxWxH (Including Terminals): 25 x 25 x 39mm
• Bosch Part Ref: 0332332002
