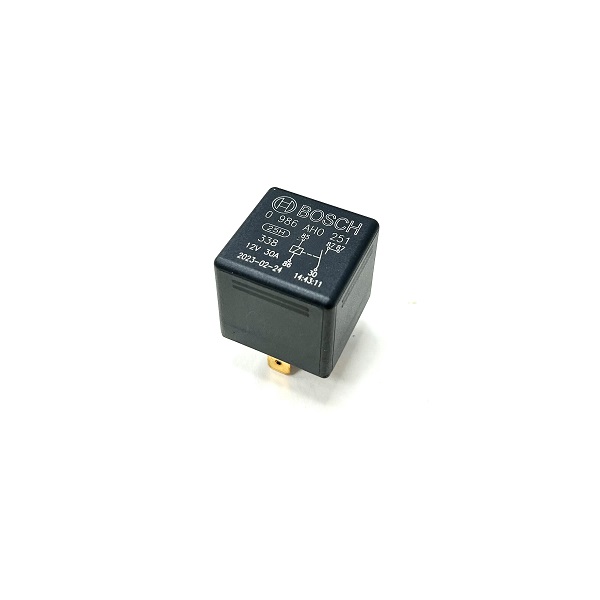

0986AH0251 - 12v 30A Double Output Relay - Genuine Bosch

Product Information

Genuine Bosch 12v 30A  relay with double output

Suitable for applications where the ability to switch a higher current between two common circuits from a low power source is needed.

A normally open relay, the relay has a 30A rating on pin 87.  The relay is open circuit at rest and makes the circuit when energised. The relay has double output on pins meaning two circuits can be switched on at the same time.

Supplied Individually

All Prices Shown Are Exclusive Of VAT

Specification

• Voltage Rating: 12v
• Current Rating: 30A Max
• Terminal Configuration: Type B
• Number Of Terminals: 5

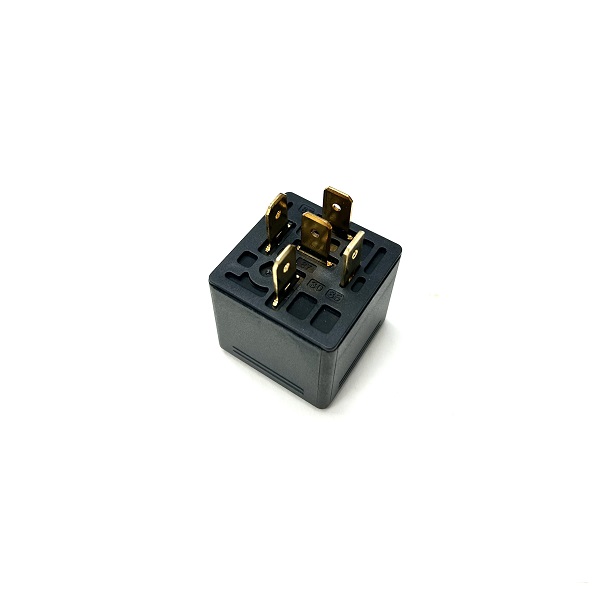

• Terminal Size: 5 x 6.3mm Male Lucar Terminals
• Bracket Type: None
• Mounting Hole Size: 5mm Approx
• Diode: No
• Resistor: No
• Dimensions LxWxH (Including Terminals): 28 x 28 x 37mm
• Bosch Part Ref: 0986AH0251
