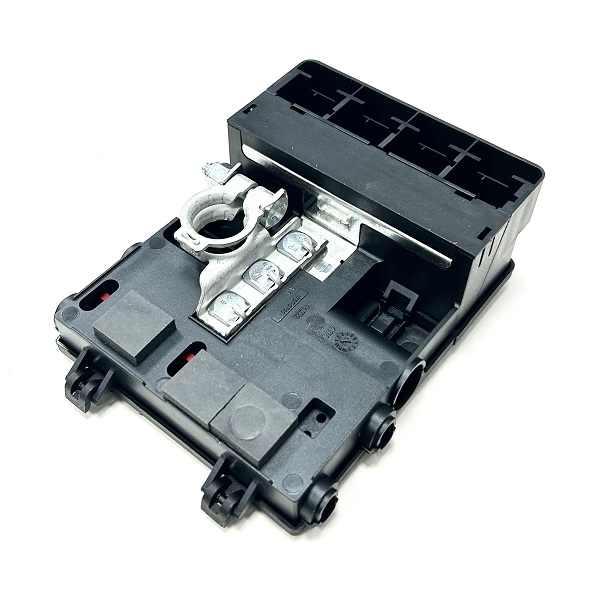

A compact, low profile battery distribution box that fits directly onto your battery positive terminal using the built in clamp.

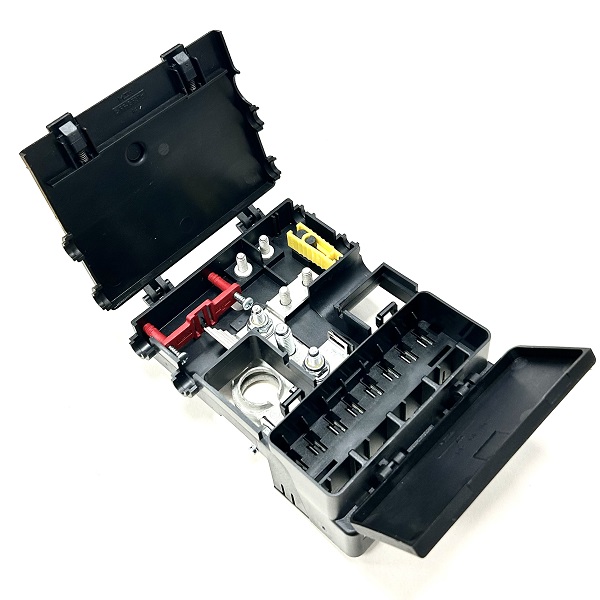

Locations for 2 midi/strip fuses and 8 maxi blade fuses
Provides plenty of take-off points from your battery and leaves more circuits free for expansion in the future

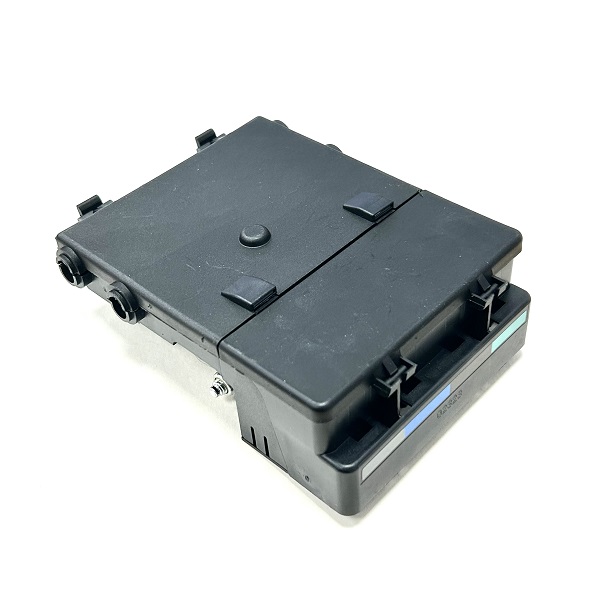

2 x separate hinged lids keep the fuses separate, spring lock tab mechanism makes sure the lids wont open when exposed to even the harshest vibrations.
Comes complete with 1 anti vibration clamp (red with two screws to clamp cable down)
Jump start take off tag allows easy connection of crocodile clip onto the tag in the fuse box, eliminating the need to remove the fuse box to jump start your vehicle!
Integrated fuse puller
The main power feed for your vehicle is taken from an M8 stud via the dedicated access hole in the casing, there is space for a further 4 cables to be fed into the fuse box and attached to M5 studs which secure the midi/strip fuses.

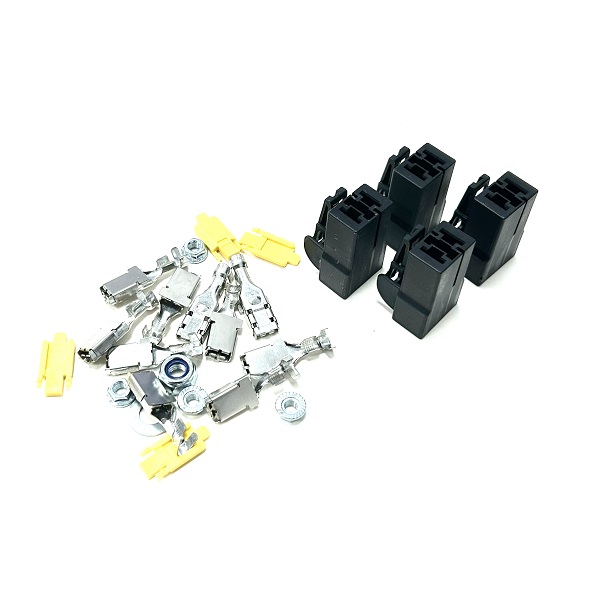

For maxi blade fuse connections there are 4 x 2 way clip in connector blocks and 8 fuse crimp terminals (suitable for 4-6mm sq. cable) with 4 yellow locking tags ensuring a sturdy and reliable connection.
Supplied Individually
All Prices Shown Are Exclusive Of VAT
Specifications
- The box is manufactured from glass filled polypropylene
- Connection posts - 1 x M8, 4 x M5
- Terminals suit cable - 4-6mmsq.
- Dimensions (mm) - 150(L) x 113(W) x 45(H)
Please note Maxi Blade Terminal connectors may be supplied as all black and not colour coded as displayed - We apologise for any inconvenience.
